• Hot pressed, high tensile steel floor and sides for durability and maximum strength, without excess weight
• Tapered sides, to dispense load faster, making it suitable for silage use
• Floor to side angle to stop material sticking for less cleaning time
• Flat top lip for easy fitting of optional extension sides
• Angled body bottom lip to maximise bottom body strength and prevent material spillage build up which can be hazardous during road use
• No sloping scow to help self-cleaning and reduce material sticking
• Massive back door opening clearance
• 65° tipping angle to maintain higher dump pile and ensure body empties completely
• Heavy-duty 3 stage hydraulic rams
• Hydraulics positioned using computer stress analysis to reduce stress or chassis, rams and body
• Rear door rams protected on door side to protect against falling material or contact with digger

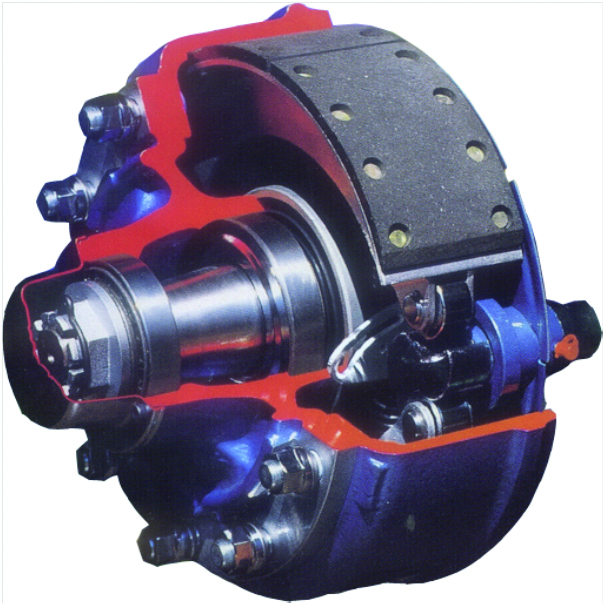

• Commercial braking. “S-cam” brakes with wide brake pad for effective and efficient braking, for extra safety when hauling heavy loads
• Air / hydraulic brakes
• Parking brake

Commercial S-Cam Brakes

• Integrated sprung axle pivot bogie essential for rough terrain and maintain higher road speed. reduced stress on chassis and bushes
• Adjustable sprung drawbar (hidden leaf spring) to reduce sharp bounce
• extra thick 40mm EN8 towing eye for longer wear and safety
• Rear reversing lights
• Protected lighting to reduce accidental damage
• Galvanised & retractable ladder
• Hoses fed through drawbar to reduce damage when turning tightly
• High speed wide flotation wheels for on and off-road use

• 15, 18, 22 Ton models
• 2 part barn and hydraulic door for side or up and over opening. Ideal for discharging awkward loads
• 2 acting rams transfer weight to the rear axle;

– to prevent the rear of the tractor lifting or jack knifing when tipping

– for manoeuvrable reversing when empty

– after tipping, rams lift the front axle for easy travel on soft ground

• Extension sides for silage or grain
• Grain chute
• Free or self-steering axle
• Skids for loading
• ABS axle sensor
• Chromed rams for use in sandy or dusty environment. Designed for 10000 tips, compared to 1500 tips for normal black rams
• Choice of wheels available
• Heavy duty hardened alloy floor for construction use
